Harnessing the Power of Waste Heat in Industrial Operations
As the world races towards ambitious decarbonization goals, industrial companies are seeking effective ways to reduce emissions and optimize energy usage. One overlooked yet powerful solution lies in the untapped potential of waste heat recovery. Every year, the global energy consumption exceeds 418 exajoules (EJ) or 116,000 terawatt-hours (TWh), with a significant portion of this energy lost as unused “waste heat” – heat expelled into the environment through exhausts, effluents, and other processes.
Recovering and repurposing this waste heat can be a game-changer for industrial operations, significantly reducing primary fuel consumption and associated greenhouse gas emissions. The financial benefits are equally compelling, with estimates suggesting that leveraging waste heat recovery could unlock annual global savings of up to €140 billion – comparable to the value of all natural gas imported by the European Union.
The Evolving Landscape of Waste Heat Recovery
Over the past decade, the landscape for waste heat recovery has undergone a transformative shift, driven by technological advancements and changing market dynamics. Historically, the focus was on the simplest and most cost-effective option – heat cascading, or reusing heat within the same process. However, the tide has turned, with new developments in high-temperature heat pumps, chemical technologies, and heat-to-power solutions making waste heat recovery a far more attractive and viable proposition.
Technological Advancements:
– High-temperature heat pumps can now increase the temperature of waste heat and generate low- and medium-pressure steam, expanding the range of applications.
– Chemical technologies have emerged as innovative alternatives for boosting waste heat temperatures and converting it into usable forms of energy.
– Heat-to-power technologies, such as organic Rankine cycles (ORCs), have become more affordable and efficient at recovering waste heat from lower-temperature sources and converting it into electricity.
Market Dynamics:
– Soaring energy prices, with electricity costs in Europe ranging from €25 to €150 per megawatt-hour (MWh) and natural gas prices doubling since 2018, have dramatically improved the business case for waste heat recovery.
– Tighter emissions regulations and growing pressure to meet decarbonization targets have heightened the urgency for industrial companies to explore energy efficiency measures like waste heat recovery.
These developments have set the stage for industrial companies to unlock the full potential of waste heat recovery, particularly through the use of air-cooled heat exchangers – a versatile and widely applicable technology.

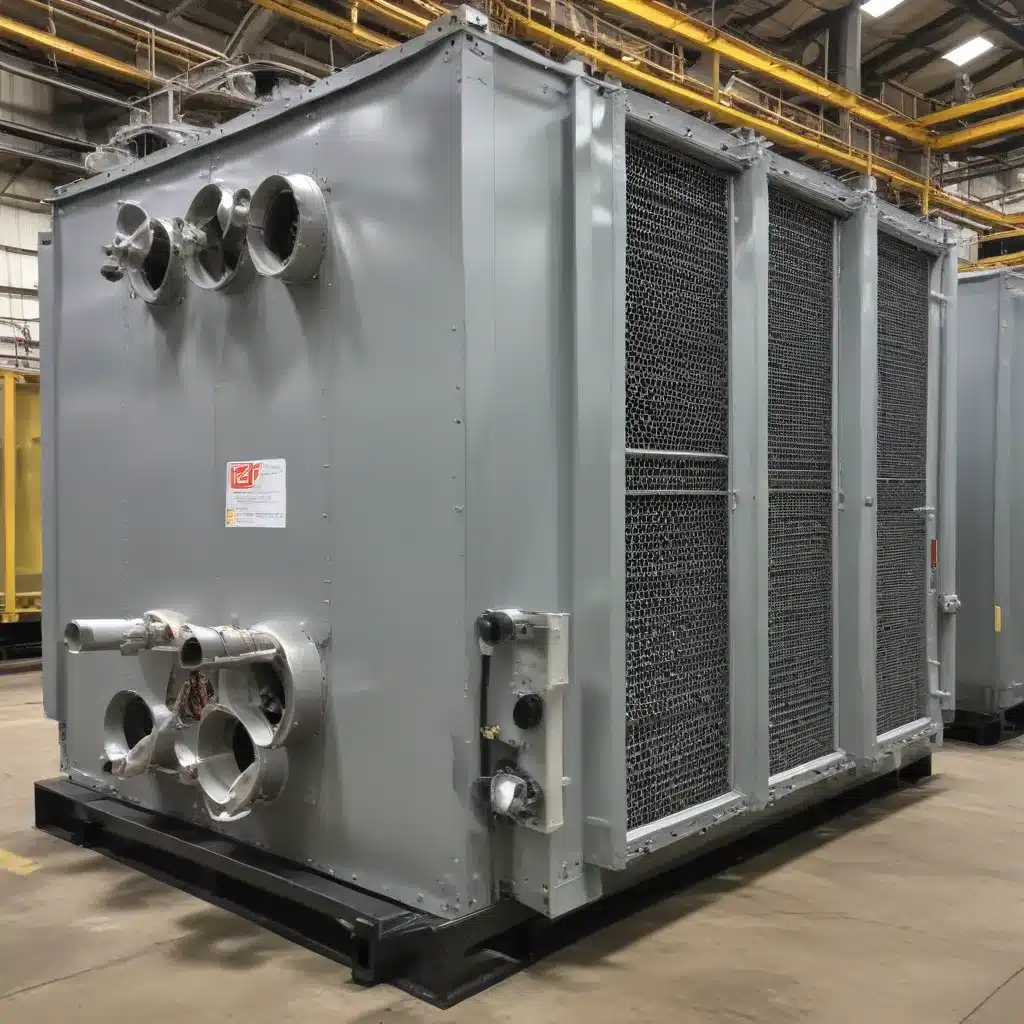

Leveraging Air-Cooled Heat Exchangers for Waste Heat Recovery
Air-cooled heat exchangers are a crucial component in the waste heat recovery ecosystem, offering a robust and flexible solution for capturing, transferring, and repurposing excess thermal energy across a wide range of industrial processes. These heat exchangers leverage the circulation of ambient air to absorb and dissipate heat, making them particularly well-suited for applications where water resources are limited or where the recovered heat needs to be transported over long distances.
Key Benefits of Air-Cooled Heat Exchangers in Waste Heat Recovery:
– Versatility: Air-cooled heat exchangers can handle a diverse range of waste heat sources, from low-grade heat (40°C and above) to high-temperature streams (up to 250°C), making them applicable across various industrial sectors.
– Water Conservation: In water-scarce regions or applications where water usage must be minimized, air-cooled heat exchangers offer a sustainable alternative to traditional water-cooled systems.
– Flexibility in Heat Transport: The ability to transport recovered heat over longer distances through air-based systems enables industrial facilities to share waste heat across different process units or even between neighboring plants.
– Compact Design: Air-cooled heat exchangers often have a smaller footprint compared to water-cooled counterparts, making them easier to integrate into existing industrial layouts.
– Reduced Maintenance: Air-cooled systems generally require less maintenance than water-cooled systems, as they are not susceptible to issues like scaling, fouling, or corrosion.
By strategically deploying air-cooled heat exchangers, industrial companies can capture waste heat from a variety of sources, including:
- Furnace and boiler exhaust
- Compressor discharge streams
- Reactor and process vessel effluents
- Cooling tower blowdown
- Condensate streams
- Dryer and oven exhaust
The recovered heat can then be repurposed for various applications, such as:
- Generating low- or medium-pressure steam for process heating
- Providing hot water or space heating for on-site or nearby facilities
- Feeding into district heating networks
- Powering organic Rankine cycle (ORC) systems to generate electricity
Evaluating the Financial and Environmental Benefits
The financial and environmental benefits of leveraging air-cooled heat exchangers for waste heat recovery are undeniable. Let’s explore a few illustrative examples:
Case Study: Refinery Waste Heat Recovery
A typical refinery can recover waste heat from sources like stripper overhead condensers, which typically operate at temperatures between 120°C and 250°C. By using this heat to generate medium-pressure steam at 5 barg, a 10 MW waste heat recovery system could produce 7-8 tons of steam per hour, worth anywhere between €0.8 million and €3.5 million per year.
Case Study: Cement Industry Waste Heat Recovery
The cement industry is another prime candidate for waste heat recovery. A typical cement plant can recover up to 120 thermal kilowatt-hours per tonne (kWh/t) of waste heat from the preheater tower and an additional 100 kWh/t from the clinker cooler. If this energy is recovered using an ORC system in a 1 million tonnes per annum (MTPA) plant at 10% efficiency, it could generate annual electricity savings of around 22 GWh, worth between €0.7 million and €3.1 million.
These examples illustrate the significant financial and emissions reduction potential that air-cooled heat exchangers can unlock in industrial waste heat recovery applications. By capturing and repurposing heat that would otherwise be lost, industrial companies can improve their operational efficiency, reduce energy costs, and make meaningful progress towards their sustainability goals.
Unlocking the Full Potential of Waste Heat Recovery
To fully realize the benefits of waste heat recovery, industrial companies must extend their focus beyond individual plant-level initiatives and adopt a more holistic, site-wide approach. This entails:
-
Expanding the Scope: Look beyond the standard list of waste heat recovery levers, such as adding a heat exchanger, and delve deeper into the industrial processes. Challenge preconceived notions and explore innovative solutions that can unlock additional heat recovery opportunities across the entire site, even crossing business unit boundaries.
-
Collaborative Partnerships: Explore opportunities to collaborate with neighboring facilities or industry partners to share waste heat, creating symbiotic relationships that maximize the utilization of available thermal resources.
-
Embracing Emerging Technologies: Stay abreast of the latest advancements in waste heat recovery technologies, including high-temperature heat pumps, chemical conversion methods, and innovative heat-to-power solutions. Continuously evaluate the feasibility of incorporating these new developments into your operations.
-
Optimizing Maintenance and Performance: Ensure that air-cooled heat exchangers and other waste heat recovery systems are meticulously maintained to operate at peak efficiency. Regularly monitor and optimize their performance to extract maximum value from the recovered heat.
By adopting a holistic, technology-forward, and collaborative approach, industrial companies can unlock the full potential of air-cooled heat exchangers and waste heat recovery, driving significant financial savings, emissions reductions, and competitive advantages in the pursuit of a more sustainable future.
Conclusion: A Roadmap to Waste Heat Recovery Excellence
As the world races towards net-zero emissions, the time is ripe for industrial companies to harness the power of air-cooled heat exchangers and waste heat recovery. With technological advancements, evolving market dynamics, and growing pressure to meet decarbonization goals, the business case for waste heat recovery has never been stronger.
By leveraging the versatility and efficiency of air-cooled heat exchangers, industrial players can capture and repurpose waste heat from a wide range of sources, generating valuable steam, hot water, or electricity – and reaping substantial financial and environmental benefits in the process.
To maximize the potential of waste heat recovery, industrial companies must think beyond individual projects and adopt a comprehensive, site-wide approach that explores innovative solutions, fosters collaborative partnerships, and stays attuned to the latest technological developments.
The path to waste heat recovery excellence is clear. By unlocking the full potential of air-cooled heat exchangers, industrial companies can position themselves as leaders in the race towards a more sustainable and profitable future.
